C340

Product Description

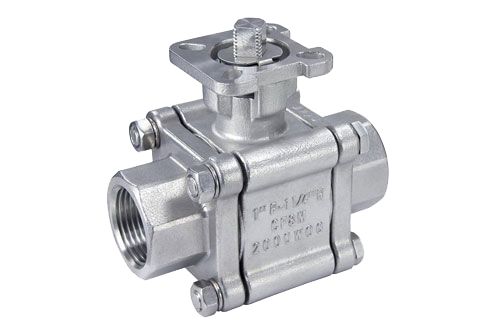

C340 Series   Heavy Duty Direct Mount Ball Valve

    3-PC Body, Stainless Steel Ball Valve
    Size: 1/4”~4”, Full Bore
    Pressure Rating: 1/4”~2”: 2000PSI
                               2-1/2”~4”: 1500PSI
    Material: CF8M (EN.1.4408); CF8 (EN.1.4401); WCB (1.0619)

Product Feature
  • For chemical and industrial application
  • High quality investment casting
  • Temperature Range: -4 to 356
  • Virgin Teflon Seats / R-PTFE
  • Blow-out proof stem
  • 100% tested by air-under water for open & close position
  • Thread: BSP, NTP, DIN
  • ISO 5211 Mounting Pad
  • End Option: Thread End, Butt Weld End, Socket Weld End
